The Navigator E604 Curved Stairlift
Custom-Fit Stairlift Solutions

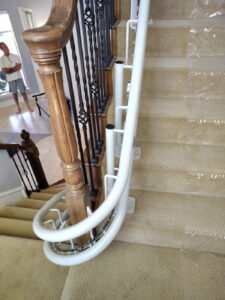

The Pilot Navigator E604 Curved Stairlift is a 100% custom-designed stairlift, expertly crafted to fit seamlessly on any staircase, including complex layouts across Texas homes. Featuring a twin rail design, this stairlift hugs the wall closely, maximizing open space on your staircase for safety and accessibility. It stands out as one of the few curved stairlifts perfectly suited for large curved and spiral staircases, offering a tailored mobility solution for Houston, Dallas-Fort Worth, Austin, and beyond.
HD Upgrade increases weight capacity to 350lbs.

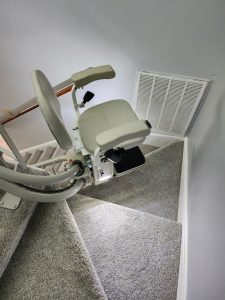

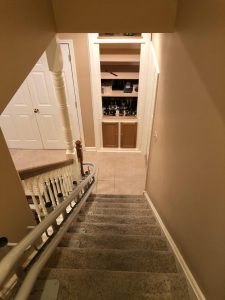

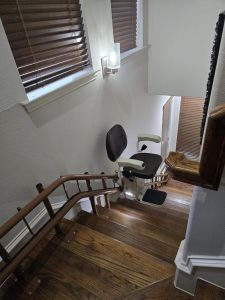

The Pilot Navigator E604 Curved Stairlift has a Steep Start option that reduces the footprint to as little as 11″ at the lower landing. Park the chair around the corner at the top of the bottom. Designed for any 90° or 180° turns, large radius turns, or spiral style staircases.

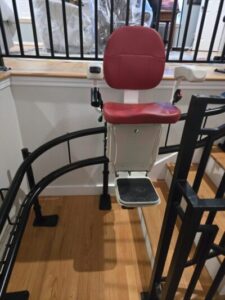

The benefit of a twin rail system is there are no moving components to maintain the level and balance of the chair. Other types of rails on the market maintain their balance with programming and gyroscopic features – more specialty parts that can wear over time. When it comes to long-term reliability, simple is best – and that is why the Pilot Navigator E604 is a great solution for stair safety.
Two remote controls included.
Forget to leave the lift on charge? The Navigator
HD (upgrade) with voice command will alert the user.
Easy to use controls.

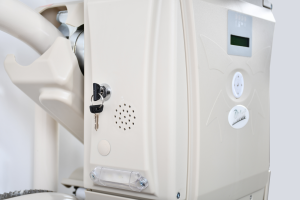

Key switch locks unit for safety.
Quick release retractable safety belt.
Custom rails can be painted in pure white, oyster white, matte black, beige brown, or silk grey.
- 265 lbs. weight limit. Increase to 350 lbs. with HD upgrade
- Sleep mode preserves batteries up to 20 days if left off charge

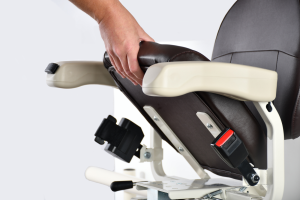

- The footrest folds synchronously when you fold the seat.
- Sensors immediately stop the lift if any obstruction is detected
- LED lights on the carriage (HD) illuminate your stairs
- Key switch prevents unauthorized use
- Move silently and gently with soft start/stop technology
- Two remote controls included
- Retractable seat belt included
- Voice Command alerts user if off charge (HD model only)
SAFETY IS THE STANDARD
• 5 directional safety sensors
• Retractable seat belt
• Armrest position sensors
• Seat position sensor
• Over speed governor
• Electro mechanical brake
• Key switch

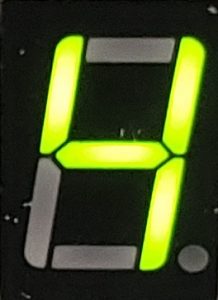

DIAGNOSTICS DISPLAY
• Displays codes for all functions
• Quick Troubleshooting
• Communicates Power Failures
• Safety Edge Sensor Codes
OUTDOOR OPTIONS
The Outdoor E604 has been completely weatherized with galvanized components & powder coating.
Each unit Is supplied with:
• 2 lockboxes for storing the remotes
• A weatherproof charger box

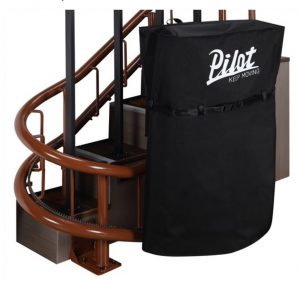

• Fabric cover to protect from weather
• Motor 950W, 24VDC
• Speed 20-fpm~ 6M/min
• Drive Method: Rack & Pinion
• Incline Limits 0~52°
• Charger 115~230V AC, 50/60Hz
• Battery 24VDC re-chargeable batteries
• Internal Arm Rest Width 16″ – 20″
• Seat to Footplate Height 18.8″
• Overtravel prevention, motor brake
• key switch, retractable seat belt,
• 5 years on the motor gear box
• 2 years on components
Navigator E604 Outdoor Stairlift has a powder coated rail & gear rack from to prevent from rusting. The chair is completely weatherized with a powder coated chassis and galvanized components. Each outdoor model comes with a storage cover for when the chair is not in use.
